Fuhua Drilling Rig Product Matrix
Water Well Drilling Rig / Water & Air Dual-Purpose Rig
The banner section remains unchanged. Below the banner, FH200, FH260, FH600, and FH1000 are displayed in sequence with premium card-based layouts, editable image widgets, and structured technical specification tables for direct use on an English product landing page.
Water Well Drilling Rig
Compact Water Well Drilling Solution
FH200 Water Well Drilling Rig
Designed for medium-shallow water well drilling and general foundation work, this model offers a compact structure, agile mobility, and convenient transport performance. It is well suited for rural water wells, dewatering wells, and regular formation drilling applications.
Drilling Depth
200 m
Max Lifting Force
17 T
Rotary Torque
5600-9600 Nm
Matched Power
37-75 kW (YC4A90-T22)
Key Highlights
- Drilling Diameter: 105-219 mm
- Working Air Pressure: 1.2-3.5 MPa
- Power Head Stroke: 4000 mm
- Travel Speed: 2.8-4.8 km/h
- Climbing Ability: 35°
- Winch Rope Capacity: 60 m (25 m standard)

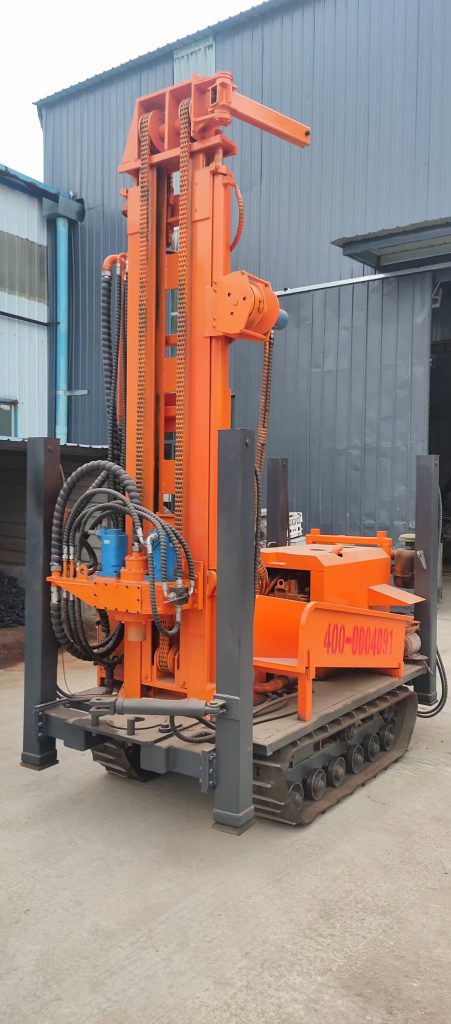

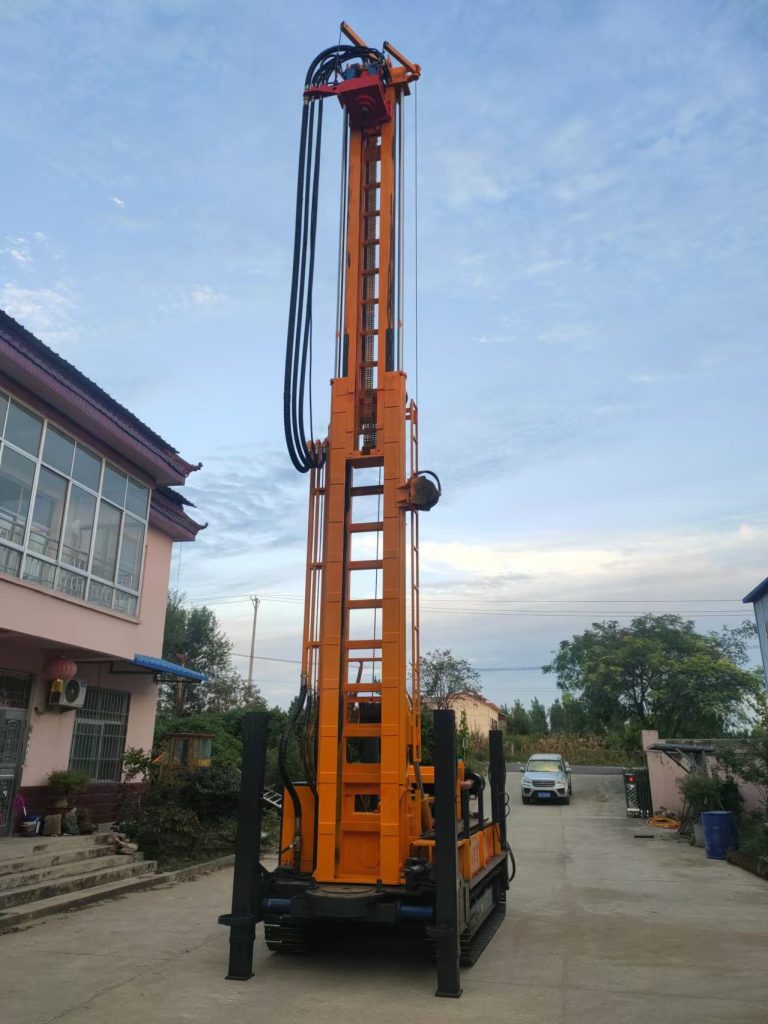

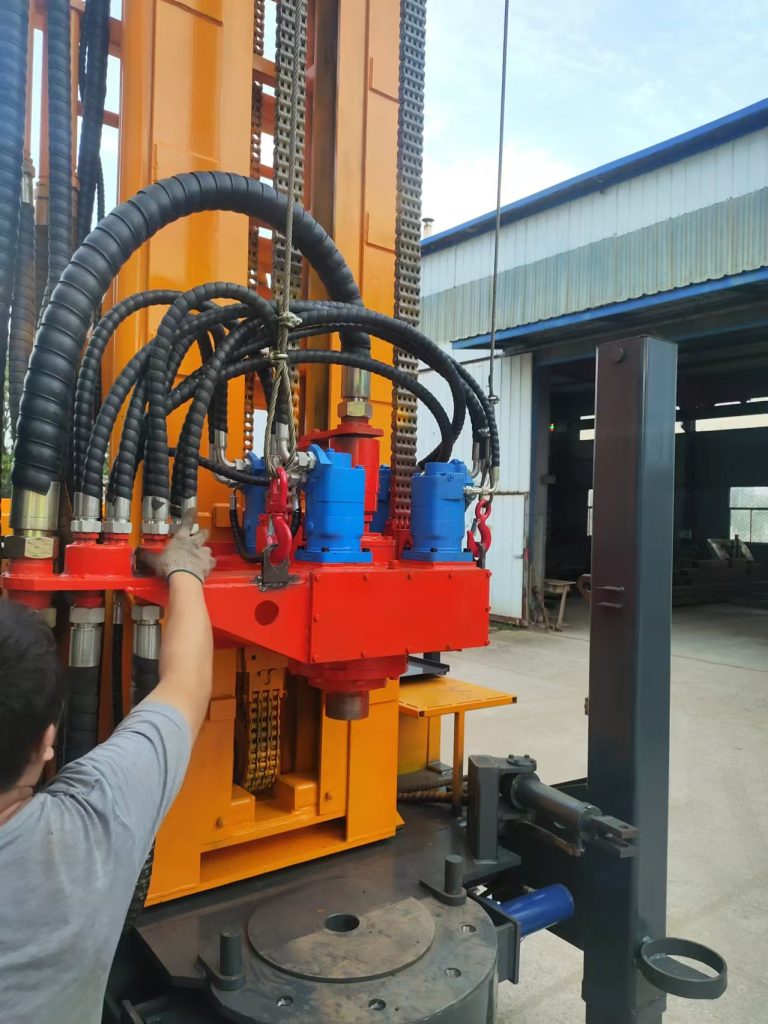

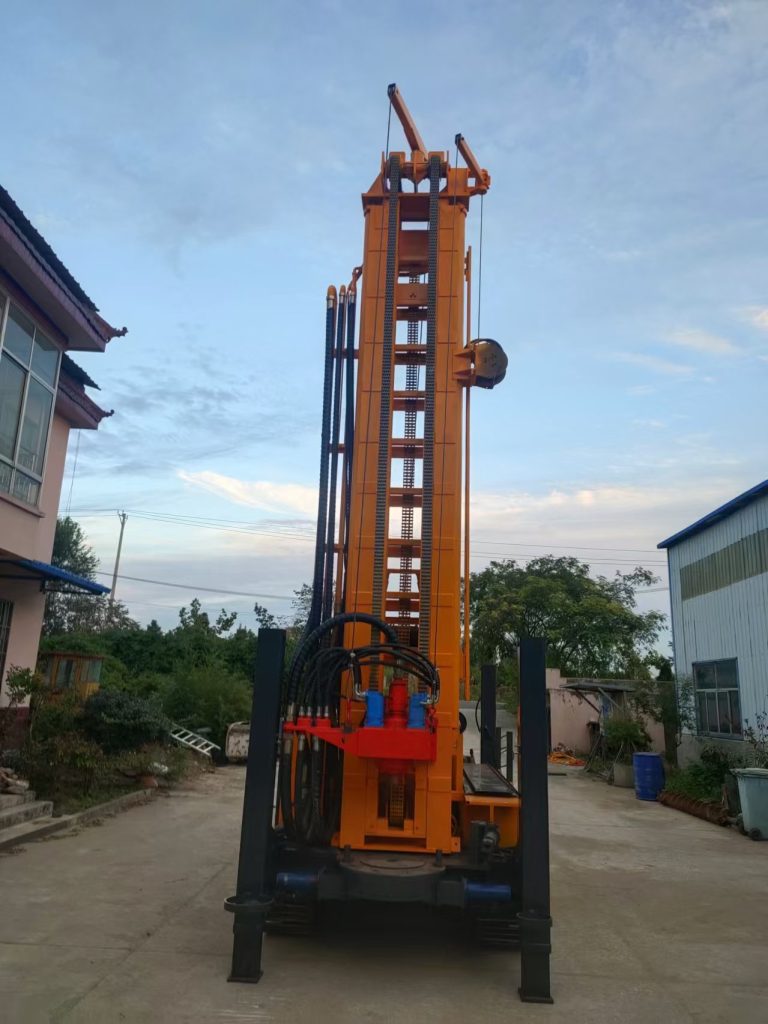

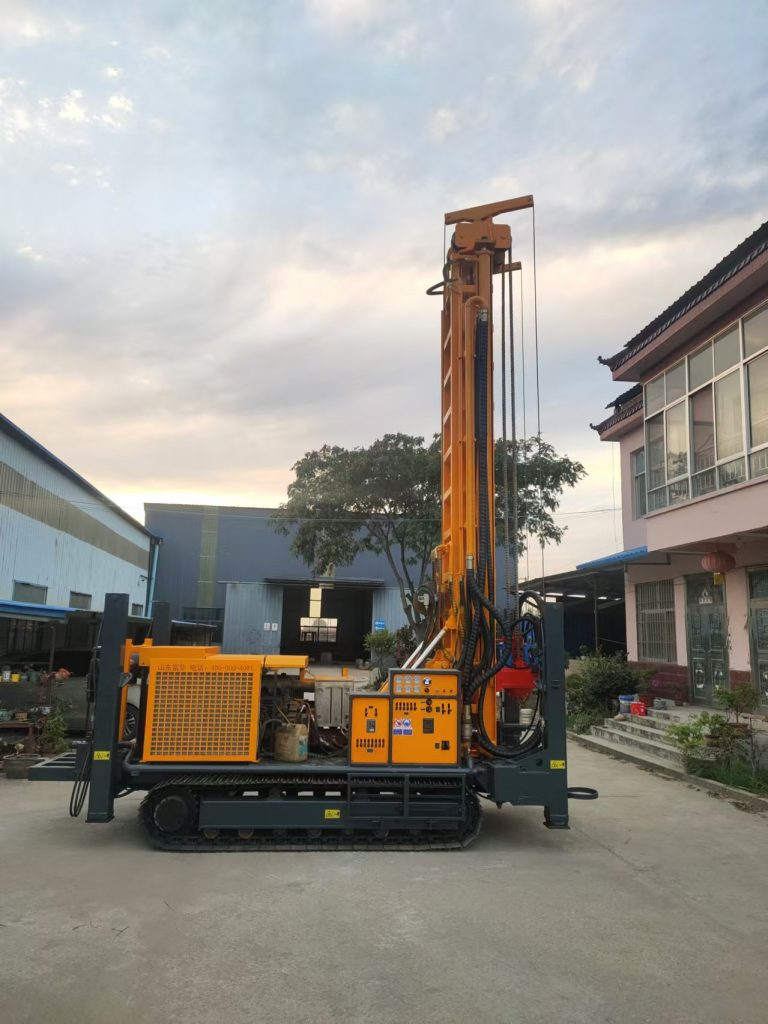

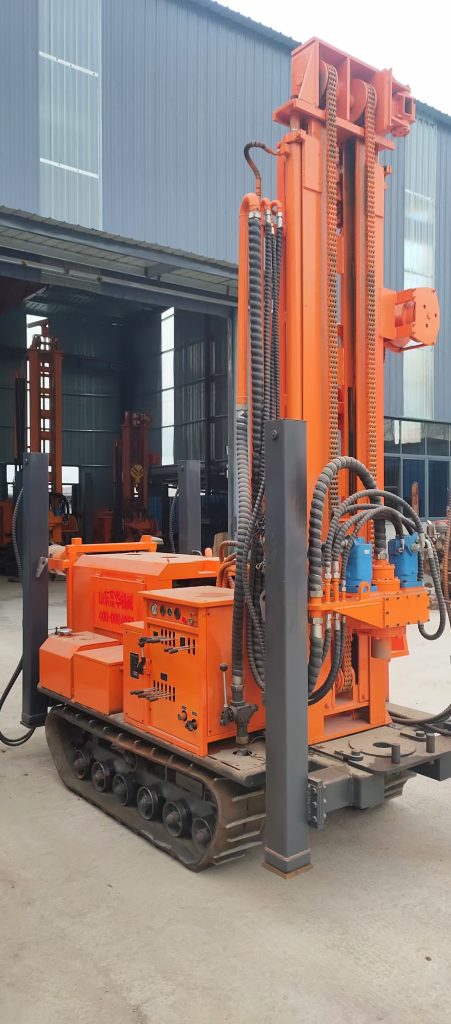

Product Gallery
Each image below is a separate Elementor image widget, so you can directly click and replace it after importing. Recommended usage: machine overview, jobsite scene, power head detail, chassis structure, and transport condition.
5 Editable Image Slots
Technical Specifications
All specifications have been organized from the original source and are ready for direct product page use.
| Parameter | Value |
|---|---|
| Drilling Depth | 200 m |
| Drilling Diameter | 105-219 mm |
| Working Air Pressure | 1.2-3.5 MPa |
| Power Head Stroke | 4000 mm |
| Max Lifting Force | 17 T |
| Rotary Torque | 5600-9600 Nm |
| Rotary Speed | 55-100 r/min |
| Matched Power | 37-75 kW (YC4A90-T22) |
| Travel Speed | 2.8-4.8 km/h |
| Climbing Ability | 35° |
| Main Pump Max Flow | 64-64-50 L/min |
| Hydraulic System Pressure | 20 MPa |
| Fuel Tank Capacity | 70 L |
| Hydraulic Oil Capacity | 90 L |
| Engine Oil Replacement Volume | 11 L |
| Coolant Capacity | 30 L |
| Overall Dimensions | 4200×1500×2200 mm |
| Loading Outrigger Width | 2600 mm |
| Max Ground Clearance | 1300 mm |
| Welder Belt B | 1800 |
| Engine Belt | — |
| Winch Rope Capacity | 60 m (25 m standard) |
| Air Filter Element Model | 1833 |
| Air Cleaner Oil Volume | 3 L |
| Power Head Oil Volume | 17 L |
| Machine Weight | 4000 kg |
| Auxiliary Winch Max Lifting Force | 1000 kg |
Water Well Drilling Rig
Extended Stroke Water Well Rig
FH260 Water Well Drilling Rig
Compared with the 200-meter class configuration, this model provides a longer power head stroke and a stronger overall setup for more demanding drilling conditions, balancing drilling stability, hoisting performance, and continuous working efficiency.
Drilling Depth
260 m
Max Lifting Force
17 T
Rotary Torque
6800-10000 Nm
Matched Power
92 kW (YN48GBZ)
Key Highlights
- Drilling Diameter: 105-219 mm
- Working Air Pressure: 1.2-3.5 MPa
- Power Head Stroke: 6600 mm
- Travel Speed: 2.8-4.8 km/h
- Climbing Ability: 35°
- Winch Rope Capacity: 60 m (25 m standard)
Product Gallery
Each image below is a separate Elementor image widget, so you can directly click and replace it after importing. Recommended usage: machine overview, jobsite scene, power head detail, chassis structure, and transport condition.
5 Editable Image Slots
Technical Specifications
All specifications have been organized from the original source and are ready for direct product page use.
| Parameter | Value |
|---|---|
| Drilling Depth | 260 m |
| Drilling Diameter | 105-219 mm |
| Working Air Pressure | 1.2-3.5 MPa |
| Power Head Stroke | 6600 mm |
| Max Lifting Force | 17 T |
| Rotary Torque | 6800-10000 Nm |
| Rotary Speed | 55-100 r/min |
| Matched Power | 92 kW (YN48GBZ) |
| Travel Speed | 2.8-4.8 km/h |
| Climbing Ability | 35° |
| Main Pump Max Flow | 80-80-50 L/min |
| Hydraulic System Pressure | 20 MPa |
| Fuel Tank Capacity | 70 L |
| Hydraulic Oil Capacity | 90 L |
| Engine Oil Replacement Volume | 11 L |
| Coolant Capacity | 30 L |
| Overall Dimensions | 5100×1700×2300 mm |
| Loading Outrigger Width | Front 2600 mm / Rear 2900 mm |
| Max Ground Clearance | 1300 mm |
| Welder Belt B | 1800 |
| Engine Belt | — |
| Winch Rope Capacity | 60 m (25 m standard) |
| Air Filter Element Model | 1833 |
| Air Cleaner Oil Volume | 3 L |
| Power Head Oil Volume | 11 L |
| Machine Weight | 6800 kg |
| Auxiliary Winch Max Lifting Force | 1000 kg |
Water & Air Dual-Purpose Rig
Mid-Deep Well Water & Air Rig
FH600 Dual-Purpose Water & Air Drilling Rig
Built for mid-deep well construction, this highly efficient dual-purpose platform delivers a larger drilling diameter, higher torque, and stronger lifting capacity. It is suitable for irrigation wells, construction dewatering wells, and mixed-formation drilling tasks.
Drilling Depth
600 m
Max Lifting Force
27 T
Rotary Torque
10000-16000 Nm
Matched Power
280 kW (WP12.380E32)
Key Highlights
- Drilling Diameter: 105-400 mm
- Working Air Pressure: 1.2-3.5 MPa
- Power Head Stroke: 6800 mm
- Travel Speed: 2.8-4.8 km/h
- Climbing Ability: 35°
- Winch Rope Capacity: 60 m (25 m standard)
Product Gallery
Each image below is a separate Elementor image widget, so you can directly click and replace it after importing. Recommended usage: machine overview, jobsite scene, power head detail, chassis structure, and transport condition.
5 Editable Image Slots
Technical Specifications
All specifications have been organized from the original source and are ready for direct product page use.
| Parameter | Value |
|---|---|
| Drilling Depth | 600 m |
| Drilling Diameter | 105-400 mm |
| Working Air Pressure | 1.2-3.5 MPa |
| Power Head Stroke | 6800 mm |
| Max Lifting Force | 27 T |
| Rotary Torque | 10000-16000 Nm |
| Rotary Speed | 55-200 r/min |
| Matched Power | 280 kW (WP12.380E32) |
| Travel Speed | 2.8-4.8 km/h |
| Climbing Ability | 35° |
| Main Pump Max Flow | 250-160-160-64 L/min |
| Hydraulic System Pressure | 20 MPa |
| Fuel Tank Capacity | 200 L |
| Hydraulic Oil Capacity | 360 L (220 L for oil change) |
| Engine Oil Replacement Volume | 22 L |
| Coolant Capacity | 50 L |
| Overall Dimensions | 5800×2100×2700 mm |
| Loading Outrigger Width | Front 2900 mm / Rear 3100 mm |
| Max Ground Clearance | 1400 mm |
| Welder Belt B | 1800 |
| Engine Belt | 10PK1025, 8PK1160 |
| Winch Rope Capacity | 60 m (25 m standard) |
| Air Filter Element Model | 2337 |
| Air Cleaner Oil Volume | 3 L |
| Power Head Oil Volume | 17 L |
| Machine Weight | 11600 kg |
| Auxiliary Winch Max Lifting Force | 1000 kg |
Water & Air Dual-Purpose Rig
Flagship Deep Well Water & Air Rig
Shandong Fuhua FH1000 Dual-Purpose Water & Air Drilling Rig
Positioned for large-scale deep well construction and heavy-duty working conditions, this flagship model features higher power, greater torque, and stronger lifting performance. It is ideal for deep water wells, geothermal wells, and large-diameter drilling in complex formations.
Drilling Depth
1000 m
Max Lifting Force
60 T
Rotary Torque
12000-18000 Nm
Matched Power
338 kW
Key Highlights
- Drilling Diameter: 105-450 mm
- Working Air Pressure: 1.2-3.5 MPa
- Power Head Stroke: 6800 mm
- Travel Speed: 2.8-4.8 km/h
- Climbing Ability: 35°
- Winch Rope Capacity: 60 m (25 m standard)
Product Gallery
Each image below is a separate Elementor image widget, so you can directly click and replace it after importing. Recommended usage: machine overview, jobsite scene, deep-well operation, power head, chassis, hydraulic system, and transport condition.
7 Editable Image Slots
Technical Specifications
All specifications have been organized from the original source and are ready for direct product page use.
| Parameter | Value |
|---|---|
| Drilling Depth | 1000 m |
| Drilling Diameter | 105-450 mm |
| Working Air Pressure | 1.2-3.5 MPa |
| Power Head Stroke | 6800 mm |
| Max Lifting Force | 60 T |
| Rotary Torque | 12000-18000 Nm |
| Rotary Speed | 90-240 r/min |
| Matched Power | 338 kW |
| Travel Speed | 2.8-4.8 km/h |
| Climbing Ability | 35° |
| Main Pump Max Flow | 400-160-160-64 L/min |
| Hydraulic System Pressure | 20 MPa |
| Fuel Tank Capacity | 200 L |
| Hydraulic Oil Capacity | 400 L (260 L for oil change) |
| Engine Oil Replacement Volume | 22 L |
| Coolant Capacity | 50 L |
| Overall Dimensions | 6800×2300×3000 mm |
| Loading Outrigger Width | Front 3000 mm / Rear 3200 mm |
| Max Ground Clearance | 1400 mm |
| Welder Belt B | 1800 |
| Engine Belt | 10PK1025, 8PK1160 |
| Winch Rope Capacity | 60 m (25 m standard) |
| Air Filter Element Model | 2337 |
| Air Cleaner Oil Volume | 3 L |
| Power Head Oil Volume | 17 L |
| Machine Weight | 14000 kg |
| Auxiliary Winch Max Lifting Force | 1000 kg |
